Having our own foundry in addition to the main production allows us to produce:

Hanger Type Machines dead-end

Technical Specifications

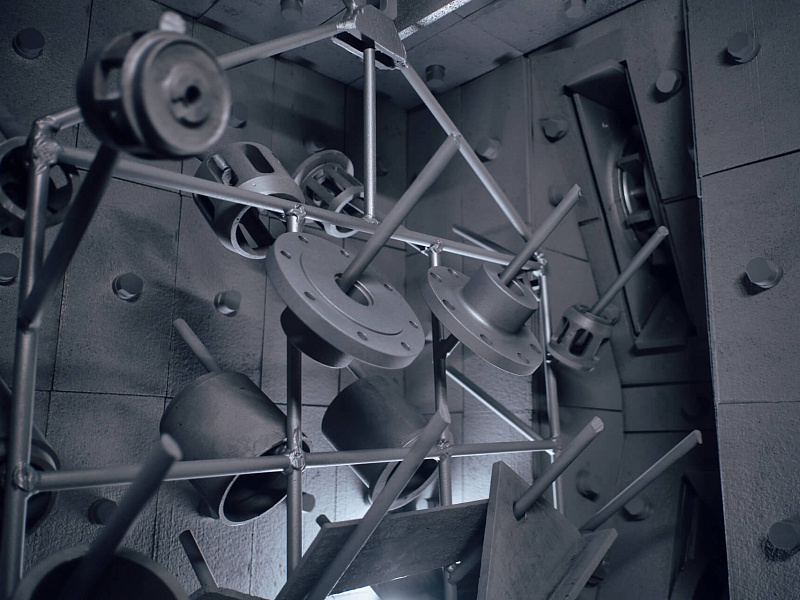

Transport system and workpieces
  • Maximum weight 1 000 kg
  • Maximum part width 1 200 mm
  • Maximum part length 1 200 mm
  • Maximum part height 1 500 mm
  • Hook rotation speed 30
  • Number of hoists 2
Installation data
  • Energy power 380V/50Hz
  • Utility 220V/50Hz
  • Total electrical power ~ 40 kW
  • Compressed air capacity for filter
  • Compressed air 5-7 atm., without moisture and oil ~ 0,5 m3/hour
  • Noise level at a distance of 1 m <85 dB
Installed power of electric motors
  • 2 blast wheels 11 kW
  • 1 filter fan 220V/50Hz
  • 1 longitudinal auger and elevator drive 3 кВт
  • 1 rotation drive 1,1 kW
  • 2 hoist по 2,2 kW
  • Total electrical power ~ 36 kW

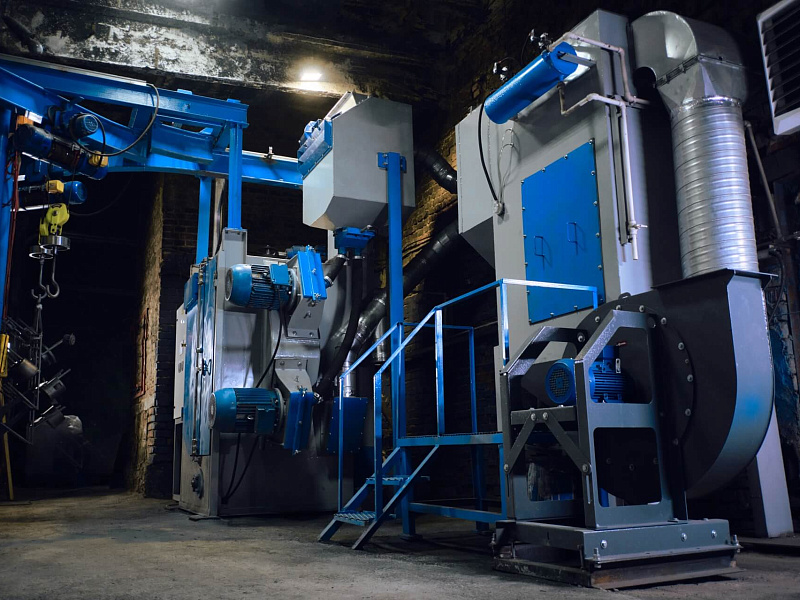

The specialists of our company have designed a universal overhead shot blaster designed for use in harsh conditions of foundries and blacksmith shops. Our advantages:

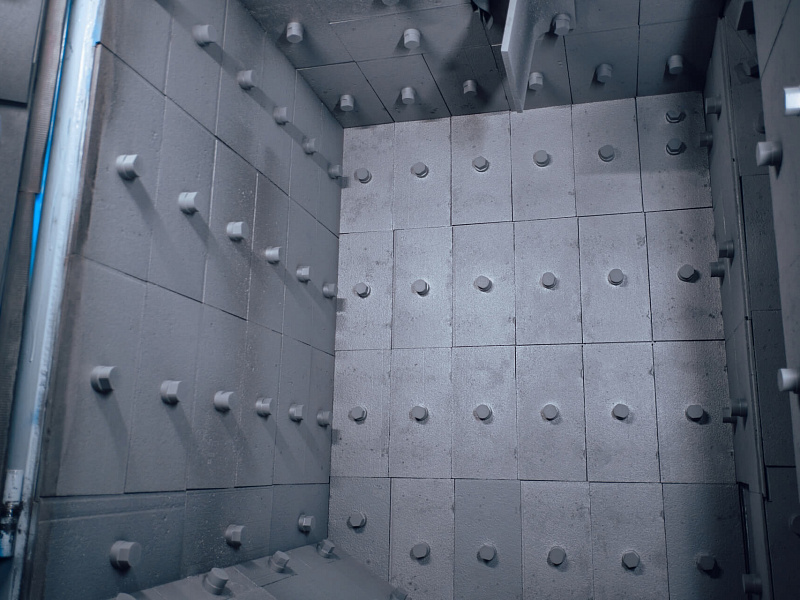

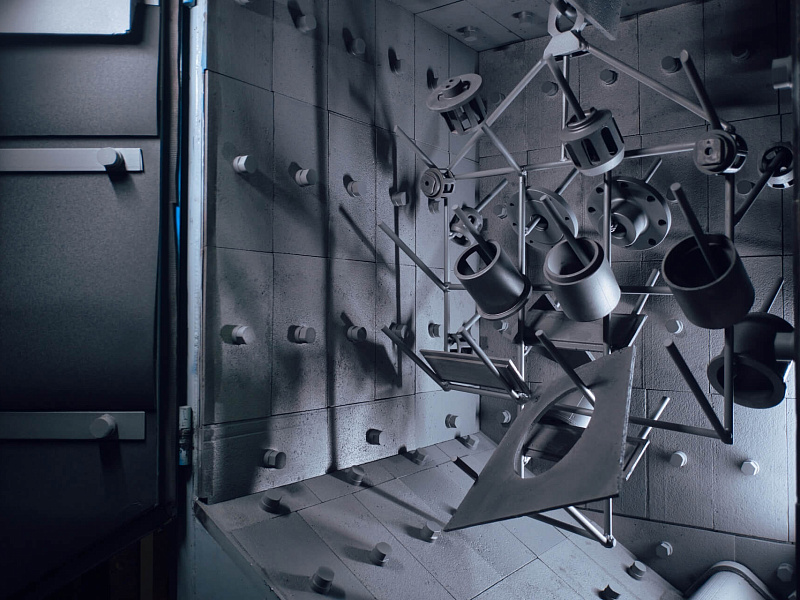

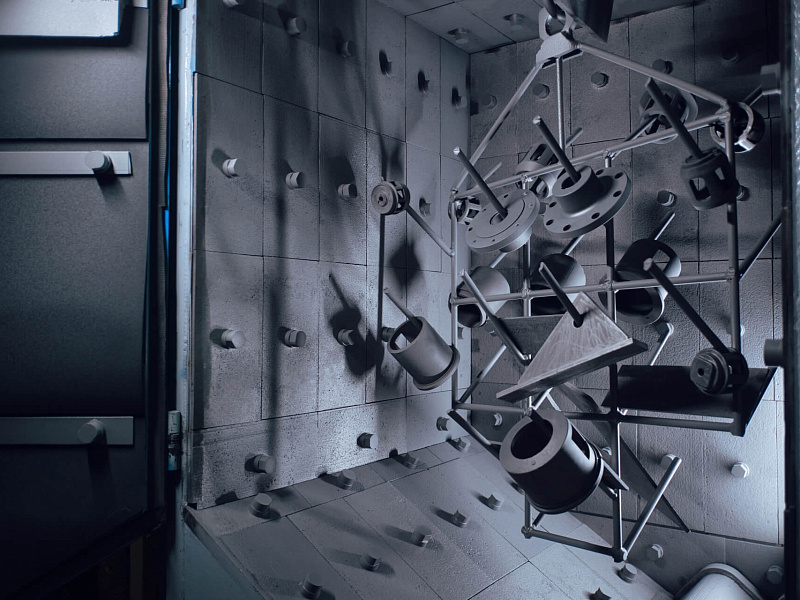

Working chamber
Unlike our competitors, we do not save on metal. The body of the overhead type shot blaster is made of sheets with a thickness of 8-10mm. The inner walls of the chamber are protected by sheets of chrome-plated cast iron with locks 15 mm thick (hardness 58-62 Hrc).

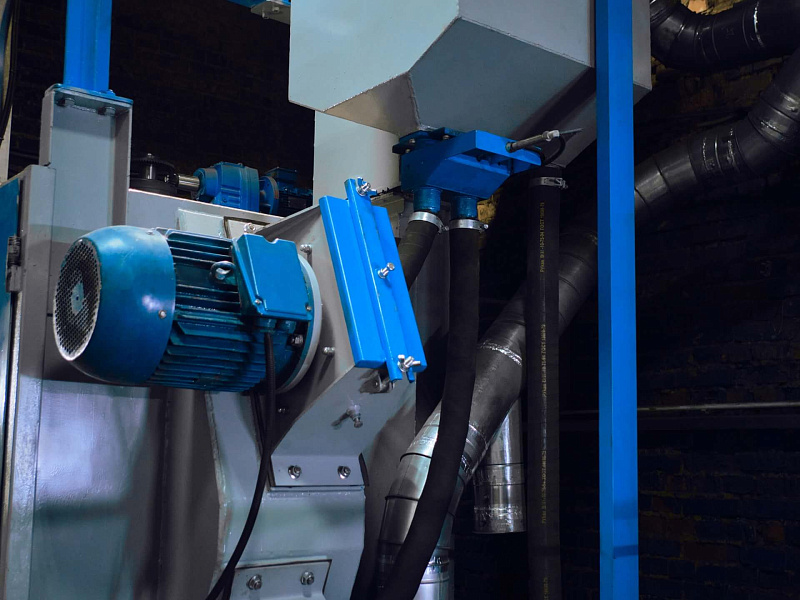

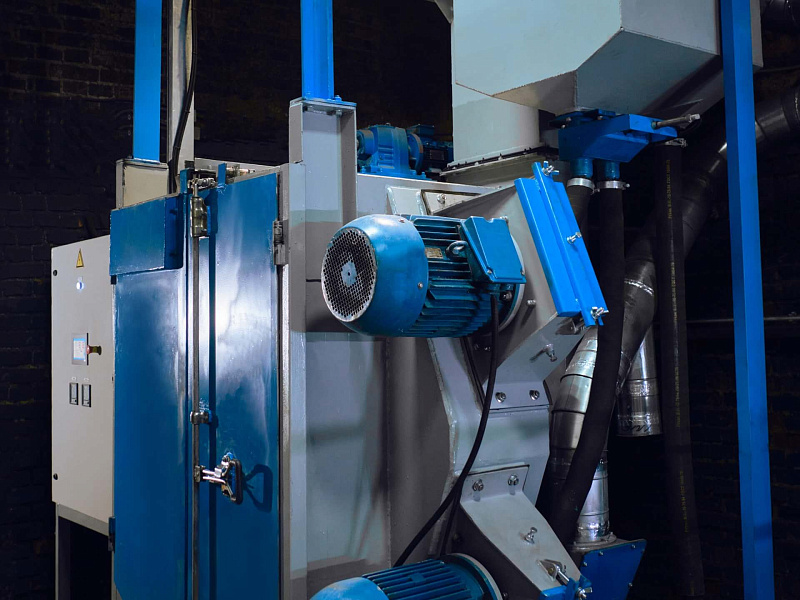

Saturn shot-blasting turbine
The dead-end shot blaster is equipped with 2 Saturn turbines with asynchronous electric motors with a power of 11.0 kW.

Transportation system
The rail is made of an I-beam - 24M. Switching between the two hoists takes place using a pneumatically-operated point. The supply and departure of equipment to and from the camera is carried out automatically.

Provides lifting of the contaminated fraction to the separator. The belt tension occurs by moving the upper drum. The conveyor belt is made of abrasion-resistant rubber with a textile gasket. The buckets are solid cast from chrome-plated cast iron. Rotation of the elevator is carried out by a gear motor, which is mounted on the upper drive drum.

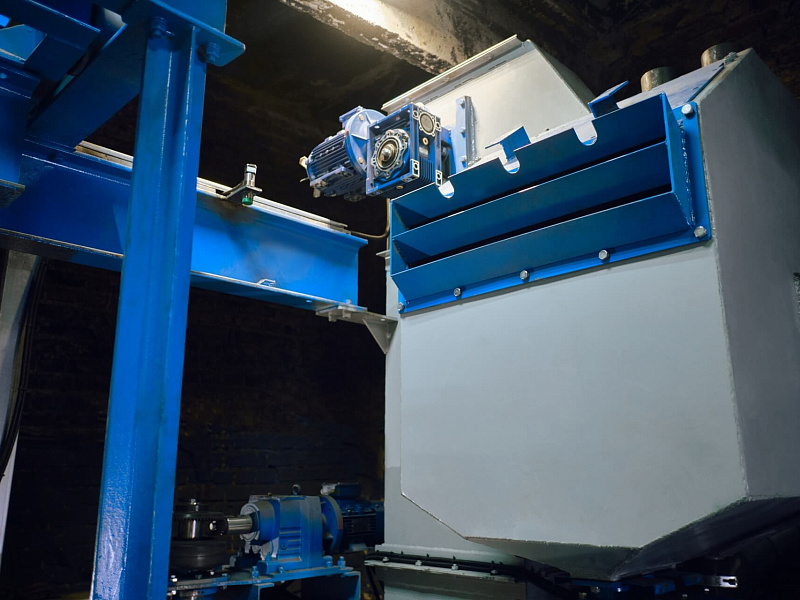

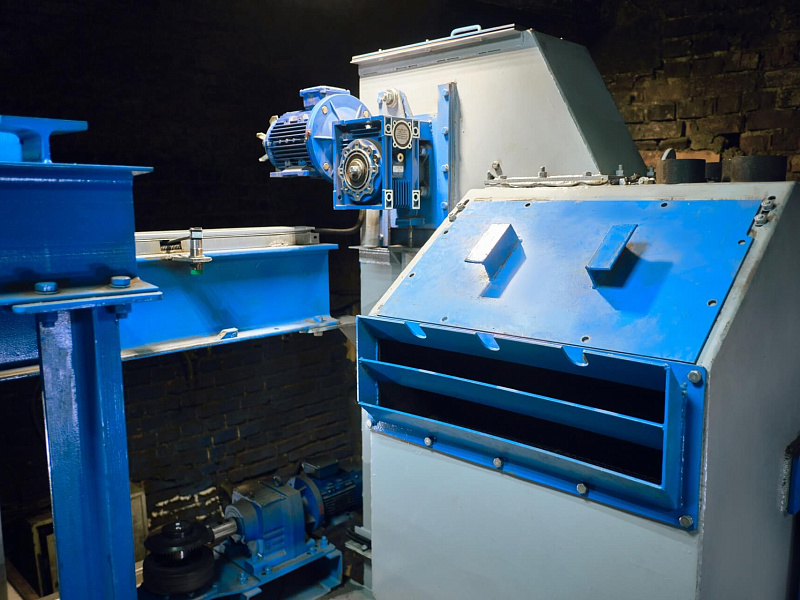

Coarse air purification system:
Instead of the outdated cyclone system, a precipitation ladder is used in the shot blasting chamber: air, together with shot and dust particles, enters the ladder, inside which a movable plate is provided. Large particles hitting the plate return to the system, and the dust enters the filter. By adjusting the height of the plate, you can change the size of the particles returned to the system. The precipitation ladder reduces the shot abrasive consumption by 10% and significantly increases the service life of filters.

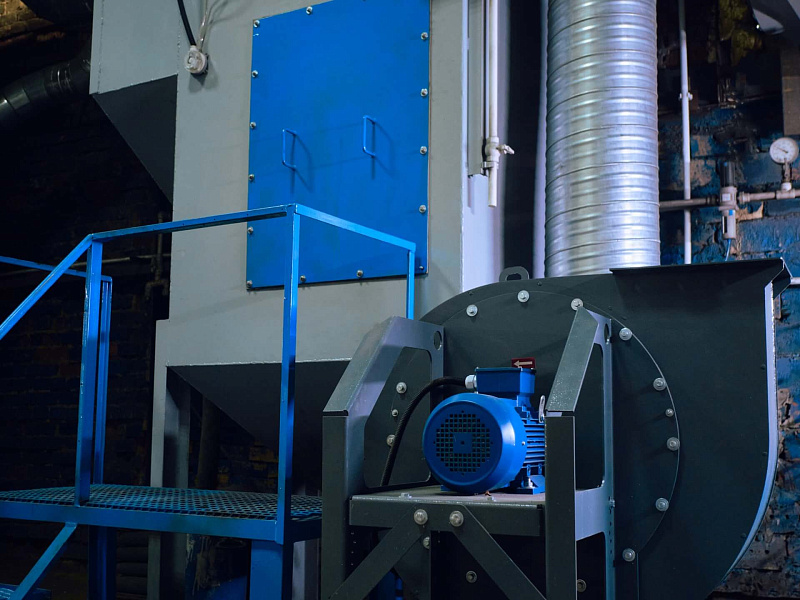

Cartridge-type dust removal system:
The filter unit "F - 8000" is designed to capture dry metal dust formed as a result of shot blasting. It is designed to work in heavy industrial conditions, to capture a large volume of dust during continuous processing.

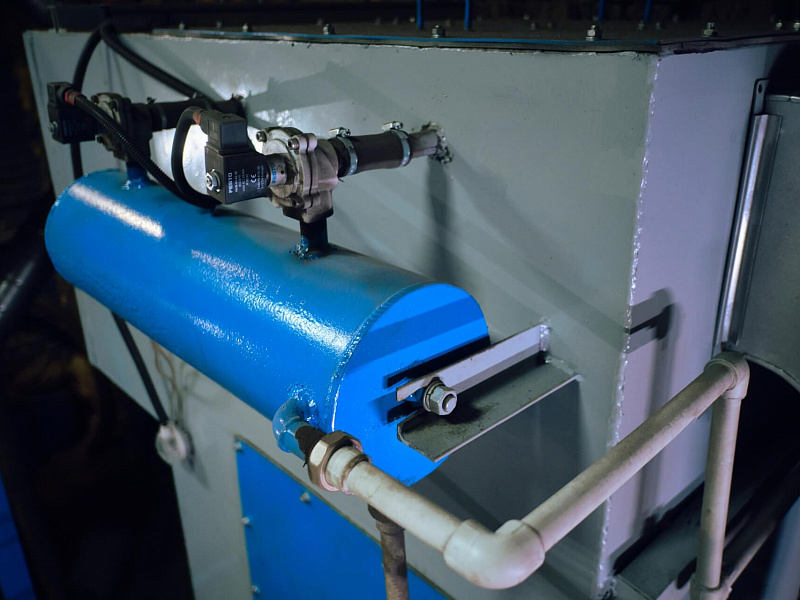

The dust in the filter unit "F8000" is captured by special cartridges with a dust cleaning and accumulation system, while they are simple and unpretentious to maintain. The unit is equipped with 8 cartridges. The cleaning system removes dust from the surface of the cartridges by accumulating it in a special dust container.

Control cabinet:
The automated control system of the shot blaster includes equipment from leading European and domestic manufacturers. The system ensures efficient and safe operation of the equipment throughout the entire period of operation. The automated control system of the shot blaster is built on the2 basis of a panel controller from B & R (in terms of quality parameters, it is not inferior to Siemens). It is installed on the local control panel of the shot blaster and is designed to implement algorithms for controlling equipment in manual and automatic mode, and also displays information about the condition of the equipment."
